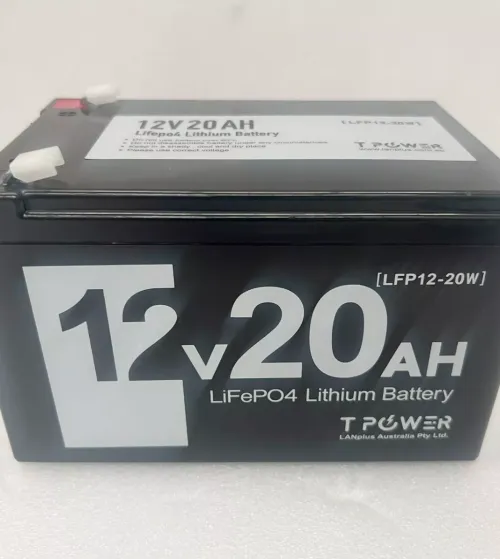

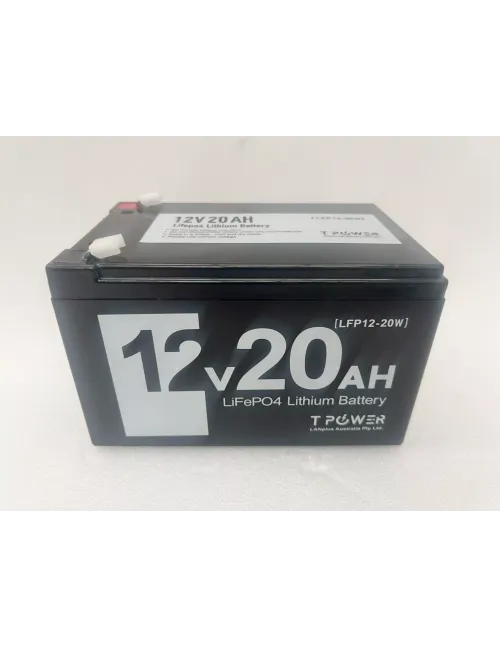

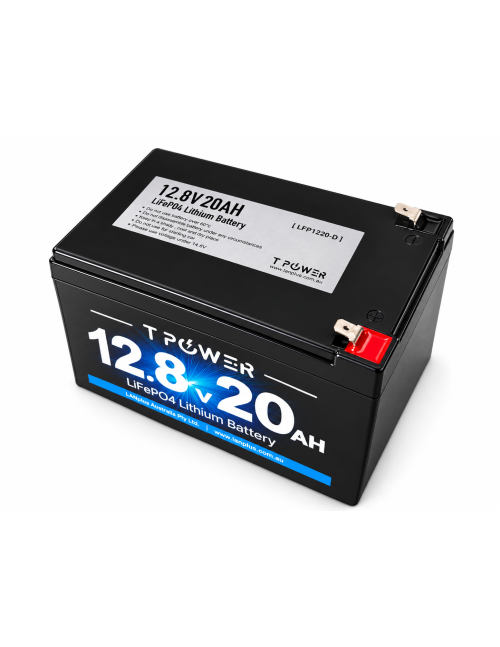

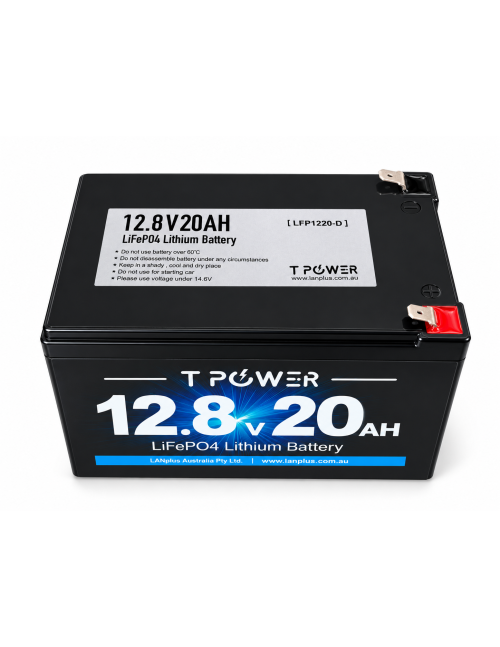

TPower 12V 20Ah LiFePO4 Lithium Battery F2 – 12Ah / 15Ah Case Size – 3 Year Warranty
12.8V Nominal Voltage | 20Ah Capacity | 256Wh Energy | 2 kg Battery Weight |
Product Description
The TPower LFP1220-D is a compact 12V 20Ah lithium iron phosphate battery with F2 terminals for compatible UPS, backup, solar and auxiliary 12V systems. Its case is similar in size to some 12Ah and 15Ah AGM batteries.
Key Features
LiFePO4 chemistry is known for strong thermal and chemical stability and long service life compared with lead-acid batteries.
Similar in size to some 12Ah / 15Ah AGM batteries — always check your space.
Common wide F2 quick-connect terminals.
Product Specifications
| Brand | TPower |
| Battery Type | Rechargeable LiFePO4 Battery |
| Model | LFP1220-D |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Rated Capacity | 20Ah |
| Energy | 256Wh |
| Charge Voltage | Up to 14.6V |
| Terminal Type | F2 spade terminals (approx. 6.35 mm) |
| Battery Dimensions | 150 × 100 × 94 mm (L × W × H) |
| Battery Weight | Approx. 2 kg |
Suitable Applications
- ✓ UPS & backup systems
- ✓ Emergency backup power
- ✓ Compatible solar storage
- ✓ Alarm & security equipment
- ✓ Auxiliary 12V power
Suitability depends on your equipment's voltage, current requirement, available space, charging system and connection type.
Charging Requirements
Use a charger, DC-DC charger or solar controller that supports LiFePO4 chemistry (14.6V charge profile). A charger intended only for AGM, GEL or flooded lead-acid batteries should not be used unless its manufacturer confirms a suitable LiFePO4 profile.
This is a rechargeable deep-cycle battery. It is not designed or sold as a car, motorcycle or marine starting / cranking battery.
Please Check Before Ordering
- The battery dimensions fit your available space.
- The F2 spade terminals and positive / negative position suit your connections.
- Your charger supports LiFePO4 chemistry.
- Your equipment's current demand is within the battery's rated limits.
Installation & Safe Use
- Observe correct polarity and use correctly rated cables and circuit protection.
- Secure the battery and prevent short circuits across the terminals.
- Do not dismantle, crush, heat or immerse the battery.
- Store and use in a cool, dry location.
Package Includes
1 × TPower 12V 20Ah LiFePO4 Battery.
Charger and battery cables are not included.
This listing includes a 3 Year Return-to-Base Warranty from the date of purchase, covering manufacturing faults under normal use.
- We reply to warranty claims within 3 business days. Please keep your order number.
- If the battery is confirmed faulty, LANplus pays the return shipping and will replace it or provide a full refund.
- The warranty does not cover physical damage, misuse, incorrect installation, use of an unsuitable charger, or batteries that have been dismantled.
This battery is also available with a 1-year and 5-year warranty as separate listings — choose the term that suits you.
Lightweight lithium power • Supplied by LANplus Australia
| BATTERY DATA SHEET | |
|---|---|
| Voltage | 12 |
- Product Code: LFP-12V-20AH
- Availability: In Stock
$189.00
