2x SAFT LS14250 3.6V 1/2 AA 1200mAh Lithium Battery Solder Tabs Li-SOCl2

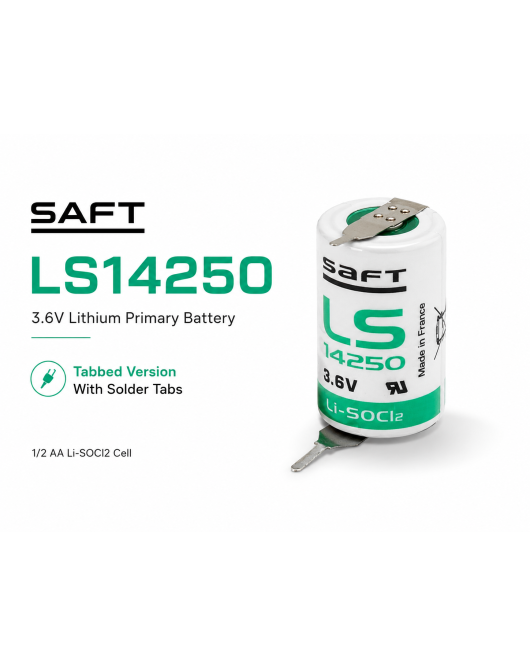

SAFT LS14250 3.6V Lithium Battery with Welded Solder Tabs
1/2 AA • 1200mAh • Li-SOCl2 • PCB Mounting Version
SAFT LS14250 primary lithium battery supplied with welded metal solder tabs for PCB mounting and equipment replacement.
This is the tabbed version, not the standard plain-terminal LS14250 battery. Please compare the terminal arrangement shown in the listing photos with your existing battery before purchasing.
Key Features
- SAFT LS14250 lithium primary battery
- Nominal voltage: 3.6V
- Nominal capacity: 1.2Ah / 1200mAh
- 1/2 AA compact battery size
- Lithium thionyl chloride chemistry — Li-SOCl2
- Welded solder tabs for PCB mounting
- Low self-discharge design
- Wide operating temperature range
- Non-rechargeable primary battery

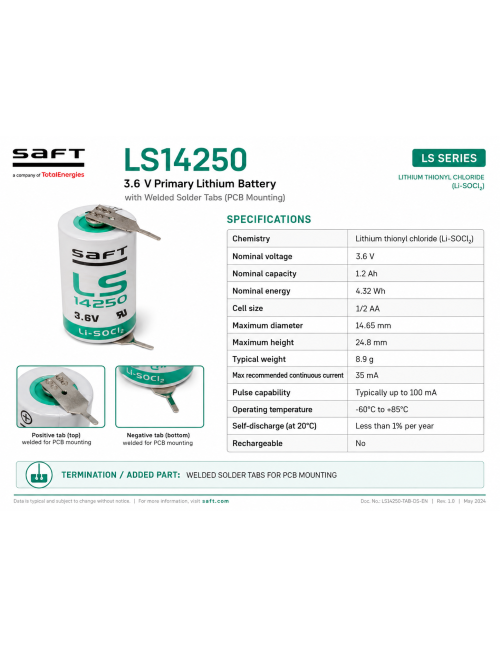

Specifications
| Brand | SAFT |
| Model | LS14250 |
| Chemistry | Lithium Thionyl Chloride — Li-SOCl2 |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 1.2Ah / 1200mAh |
| Nominal Energy | 4.32Wh |
| Battery Size | 1/2 AA |
| Maximum Diameter | 14.65mm |
| Maximum Height | 24.8mm |
| Typical Weight | 8.9g |
| Continuous Current | Maximum recommended 35mA |
| Pulse Capability | Typically up to 100mA |
| Operating Temperature | -60°C to +85°C |
| Terminal Configuration | Welded solder tabs |
| Rechargeable | No |
Package Includes
2 × SAFT LS14250 3.6V battery with welded solder tabs.
Important Compatibility Information
Please check the battery model, voltage, physical dimensions, polarity and solder-tab arrangement before ordering.
This is a 3.6V non-rechargeable primary lithium battery. It is not a 3.7V rechargeable lithium-ion battery and must not be charged.
- Product Code: SAFT LS14250 Non-Rechargeable Battery
- Availability: In Stock
$16.99
Tags: SAFT LS14250 3.6V Battery 1/2 AA 1200mAh Li-SOCl2 Lithium Thionyl Chloride Solder Tabs Welded Tabs PCB Mounting Primary Lithium Battery Non-Rechargeable Battery
